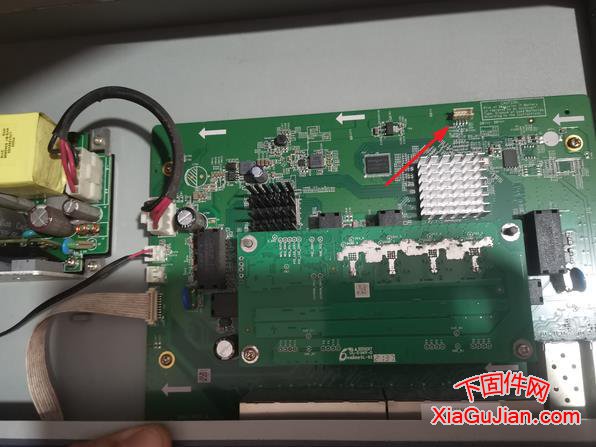

海康DS-3E1518SP-E交换机刷机教程，使用4P串口线刷机，配合刷机工具及模块才能完成刷机。
相关要求：WINDOWS 7,10.电脑。串口线及刷机小板
CH340提示：
解决的问题：解决常规升级提示失败的情况，最新版本为V1.2.7_221228
U-Boot 2011.12.(3.6.0.48)-svn17314 (Jul 26 2021 - 14:20:19)
Hit ctrl+u to stop autoboot: 0 进入超级终端
TFTP from server 192.0.0.128; our IP address is 192.0.0.64
电脑IP修改成192.0.0.128，交换机IP不需要更改。
使用updatek刷机使用。
重要提示：方法及工具不适用于正式场合，仅供娱乐测试，无技术支持，一切风险自负。
---
Board: RTL838x CPU:500MHz LXB:200MHz MEM:300MHz
DRAM: 128 MB
SPI-F: [ef4019][ef4018][c22019][20ba19][c84019]... detected flash ID: [ef4019]... 1x32 MB
Loading 65536B env. variables from offset 0xe0000
Net: Net Initialization Skipped
No ethernet found.
board info: prdc_type: 0x3,boardmodel: HIK_16C_2F_30077_D
rtcore init
RTCORE Driver Module Initialize
IOAL init
Hardware-profile probe (HIK_16C_2F_30077_D)
Hardware-profile init
GPIO probe (unit 0): (found)
GPIO Init
SPI init (unit 0)
I2C probe (unit 0)
I2C init (unit 0)
NIC probe (unit 0)
Loader RTNIC Driver Module Initialize
rtk init_light
RTK Driver Module Initialize
MAC probe (unit 0)
Chip 8382 (found)
MAC init (unit 0)
Hit ctrl+u to stop autoboot: 0
HIK#
? - alias for 'help'
base - print or set address offset
boota - boota - boot application image from flash partiton
bootm - boot application image from memory
bootp - boot image via network using BOOTP/TFTP protocol
bsp_update- bsp_update - update uImage and rootfs of bsp
cmp - memory compare
cp - memory copy
crc32 - checksum calculation
env - environment handling commands
erase - erase FLASH memory
flerase - Erase flash partition
flinfo - print FLASH memory information
flshow - Show flash partition layout
format_env- format_env -> format uboot enviroments
go - start application at address 'addr'
help - print command description/usage
iminfo - print header information for application image
load_boot_image- load_boot_image -> load boot kernel Image
loadb - load binary file over serial line (kermit mode)
loads - load S-Record file over serial line
loady - load binary file over serial line (ymodem mode)
loop - infinite loop on address range
md - memory display
mm - memory modify (auto-incrementing address)
mtest - simple RAM read/write test
mw - memory write (fill)
nm - memory modify (constant address)
ping - send ICMP ECHO_REQUEST to network host
printenv- print environment variables
printsys- printsys - print system information variables
protect - enable or disable FLASH write protection
reset - Perform RESET of the CPU
rtk - rtk - Realtek commands
run - run commands in an environment variable
saveenv - save environment variables to persistent storage
savesys - savesys - save system information variables to persistent storage
setenv - set environment variables
setsys - setsys - set system information variables
sf - SPI flash sub-system
sleep - delay execution for some time
test - open net
tftpboot- boot image via network using TFTP protocol
updateb - updateb - update u-boot.bin via net
updatek - updatek - update digicap.xxx
version - print monitor, compiler and linker version
HIK# updatek 刷机命令
rtcore_init had already been initialized!
RTK Driver Module Initialize
dal_mgmt_init had already been initialized!
MAC probe (unit 0)
Chip 8382 (found)
MAC init (unit 0)
PHY probe (unit 0)
Chip Construct (unit 0)
Chip Construct
Disable PHY Polling
PHY Reset
MAC Construct
Serdes Construct
PHY Construct
Enable PHY Polling
PHY Power Off
PHY init (unit 0)
Mgmt_dev init (unit 0)
Please wait for PHY init-time ...
read exe code[0xc0000:0xe0000] success
## Starting application at 0x80000000 ...
Using rtl8380#0 device
TFTP from server 192.0.0.128; our IP address is 192.0.0.64
Filename 'digicap.dav'.
Load address: 0x81000000
Loading: ###################刷机中配合工具使用。
done
Bytes transferred = 8988532 (892774 hex)
decrypt ok
file header error for dst_fheader->file_nums = 0x292af973
digicap.dav is no_enc type
magic:0x484b5753,check_sum:0x3470,length:0xf0,file_nums:0x00000004
header_checksum:0x00003470
uheader:0x83e66a40
found file(vmlinux.bix)...found file(rootfs.cpio.gz)...update_part = 0
## Booting kernel from Legacy Image at 83000000 ...
Image Name: RTK_SDK
Created: 2021-08-09 15:16:40 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 1449996 Bytes = 1.4 MB
Load Address: 80000000
Entry Point: 802bc230
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
Starting kernel ...
Linux version 3.18.24 (pengzuopeng@Cpl-Trans-General-13-126) (gcc version 4.8.5 20150209 (prerelease) (Realtek MSDK-4.8.5p1 Build 2536) ) #44 Thu Aug 5 16:43:18 CST 2021
MIPS: machine is RTL838xM
CPU0 revision is: 00019070 (MIPS 4KEc)
[cpu0, prom_memory_size_get:249]: Get total memory size and dma size from by kernel command line
[cpu0, prom_meminit:292]: DMA size=0x0(B)
Determined physical RAM map:
memory: 08000000 @ 00000000 (usable)
[cpu0, plat_remove_mem_parameter:111]: cmdline= update_flag=0 boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200, 803f21bc, (null)
[cpu0, plat_remove_mem_parameter:116]: cmdline= update_flag=0 boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200
[cpu0, plat_remove_mem_parameter:111]: cmdline= update_flag=0 boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200, 803edfec, (null)
[cpu0, plat_remove_mem_parameter:116]: cmdline= update_flag=0 boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200
Initial ramdisk at: 0x84000000 (3959794 bytes)
Zone ranges:
Normal [mem 0x00000000-0x07ffffff]
Movable zone start for each node
Early memory node ranges
node 0: [mem 0x00000000-0x07ffffff]
Initmem setup node 0 [mem 0x00000000-0x07ffffff]
Primary instruction cache 16kB, VIPT, 4-way, linesize 16 bytes.
Primary data cache 16kB, 2-way, VIPT, cache aliases, linesize 16 bytes
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32512
Kernel command line: update_flag=0 boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200
PID hash table entries: 512 (order: -1, 2048 bytes)
Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
Memory: 121764K/131072K available (2838K kernel code, 147K rwdata, 920K rodata, 180K init, 155K bss, 9308K reserved)
NR_IRQS:128
console [ttyS0] enabled
Calibrating delay loop... 498.89 BogoMIPS (lpj=2494464)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
NET: Registered protocol family 16
SCSI subsystem initialized
NET: Registered protocol family 2
TCP established hash table entries: 1024 (order: 0, 4096 bytes)
TCP bind hash table entries: 1024 (order: 2, 20480 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP: reno registered
UDP hash table entries: 256 (order: 1, 12288 bytes)
UDP-Lite hash table entries: 256 (order: 1, 12288 bytes)
NET: Registered protocol family 1
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
decrypt ok
Trying to unpack rootfs image as initramfs...
Freeing initrd memory: 3864K (84000000 - 843c6000)
futex hash table entries: 256 (order: 0, 7168 bytes)
jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
msgmni has been set to 245
io scheduler noop registered
io scheduler deadline registered
io scheduler cfq registered (default)
Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x0 (irq = 47, base_baud = 12327200) is a 16550A
brd: module loaded
RTK_SPI_FLASH_MIO driver is used
Probe: SPI CS1 Flash Type W25Q256FV
0x000000000000-0x0000000e0000 : "LOADER"
0x0000000e0000-0x0000000f0000 : "BDINFO"
0x0000000f0000-0x000000100000 : "SYSINFO"
0x000000100000-0x000000800000 : "SYSTEM"
0x000000800000-0x000001a00000 : "JFFS2 APP"
0x000001a00000-0x000001d00000 : "JFFS2 CFG"
0x000001d00000-0x000002000000 : "JFFS2 LOG"
RTK_NORSFG3 driver is bypassed
TCP: cubic registered
NET: Registered protocol family 17
Freeing unused kernel memory: 180K (803d3000 - 80400000)
random: init urandom read with 3 bits of entropy available
init started: BusyBox v1.00 (2019.04.25-06:01+0000) multi-call binary
Starting pid 26, console : '/etc/rc'
RTCORE LKM Insert...
RTCORE Driver Module Initialize
IOAL init
Log init
Hardware-profile probe (HIK_16C_2F_30077_D)
Hardware-profile init
GPIO probe (unit 0): (found)
GPIO Init
SPI init (unit 0)
Intr Probe (unit 0)
TC probe (unit 0): (found)
TC init (unit 0)
TC util init (unit 0)
TC util init (isr)
Watchdog probe (unit 0): (found)
Watchdog init (unit 0)
I2C probe (unit 0)
I2C init (unit 0)
RTL8231 probe (unit 0): (found)
RTL8231 init (unit 0)
NIC probe (unit 0)
IOAL init
RTK Driver Module Initialize
MAC probe (unit 0)
Chip 8382 (found)
MAC init (unit 0)
SMI protocol probe (unit 0)
PHY probe (unit 0)
Chip Construct (unit 0)
Chip Construct
Disable PHY Polling
PHY Reset
MAC Construct
Serdes Construct
PHY Construct
Enable PHY Polling
PHY Power Off
PHY init (unit 0)
Mgmt_dev init (unit 0)
RTNIC Driver Module Initialize
RTDRV Driver Module Initialize
Wed Aug 11 11:10:11 CST 2021
COMMON GPL drv init ok!
hikio_drv: module license 'HIKVISION' taints kernel.
Disabling lock debugging due to kernel taint
HIKVISION hikio Device Driver (built Aug 4 2021 16:31:20)
Register chrdev hikio major:262,minor:0 success!
HIKVISION HIK_SW_MGMT Device Driver (built Aug 4 2021 16:30:53)
Register chrdev hik_sw_mgmt major:254,minor:0 success!
boardname:HIK_16C_2F_30077_D
Register chrdev poe_led major:220,minor:0 success!
ipaddr = 192.0.0.64,hw ether = 2c:a5:9c:93:32:74 ,route = 192.0.0.1
boardmodel is :HIK_16C_2F_30077_D
init realtek port down
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
start update flag check
board model = HIK_16C_2F_30077_D not need fiber port monitor
updateflag=0
serverip = 192.0.0.128
****updating uboot_serial main ****
serverip = 192.0.0.128
digicap.dav downloading,please waite...
digicap.dav downloaded
UP_FLAG = failed!
file name : vmlinux.bix
file length: 0x16204c
file offset: 0xf0
checkSum:0xb065f9e
file vmlinux.bix is right, chksum = 0xb065f9e
......................
file name : rootfs.cpio.gz
file length: 0x3c6bf2
file offset: 0x16213c
checkSum:0x1e18d186
file rootfs.cpio.gz is right, chksum = 0x1e18d186
............................................................
file name : guirc.tar.gz
file length: 0x3697a7
file offset: 0x528d2e
checkSum:0x1c7f7751
file guirc.tar.gz is right, chksum = 0x1c7f7751
......................................................
file name : start.sh
file length: 0x29f
file offset: 0x8924d5
checkSum:0xd9f0
file start.sh is right, chksum = 0xd9f0
unpack success!
unpack_old digicap
-rw-r--r-- 1 0 0 8988532 digicap.dav
-rwxr-xr-x 1 0 0 1450060 vmlinux.bix
-rwxr-xr-x 1 0 0 3959794 rootfs.cpio.gz
-rwxr-xr-x 1 0 0 3577767 guirc.tar.gz
-rwxr-xr-x 1 0 0 671 start.sh
updating uImage.img and rootfs etc.
updating application
Upgrade software success!
The system is going down NOW !!
The system is going down NOW !!
Sending SIGTERM to all processes.
Sending SIGTERM to all processes.
Sending SIGKILL to all processes.
Sending SIGKILL to all processes.
Please stand by while rebooting the system.
Please stand by while rebooting the system.
reboot: Restarting system
▒ystem restart.
U-Boot 2011.12.(3.6.0.48)-svn17314 (Jul 26 2021 - 14:20:19)
Board: RTL838x CPU:500MHz LXB:200MHz MEM:300MHz
DRAM: 128 MB
SPI-F: [ef4019][ef4018][c22019][20ba19][c84019]... detected flash ID: [ef4019]... 1x32 MB
Loading 65536B env. variables from offset 0xe0000
Net: Net Initialization Skipped
No ethernet found.
board info: prdc_type: 0x3,boardmodel: HIK_16C_2F_30077_D
rtcore init
RTCORE Driver Module Initialize
IOAL init
Hardware-profile probe (HIK_16C_2F_30077_D)
Hardware-profile init
GPIO probe (unit 0): (found)
GPIO Init
SPI init (unit 0)
I2C probe (unit 0)
I2C init (unit 0)
NIC probe (unit 0)
Loader RTNIC Driver Module Initialize
rtk init_light
RTK Driver Module Initialize
MAC probe (unit 0)
Chip 8382 (found)
MAC init (unit 0)
Hit ctrl+u to stop autoboot: 0
## Booting kernel from Legacy Image at 82000000 ...
Image Name: RTK_SDK
Created: 2021-08-09 15:16:40 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 1449996 Bytes = 1.4 MB
Load Address: 80000000
Entry Point: 802bc230
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
size of rootfs.cpio.gz = 0x3c6bf2
Starting kernel ...
Linux version 3.18.24 (pengzuopeng@Cpl-Trans-General-13-126) (gcc version 4.8.5 20150209 (prerelease) (Realtek MSDK-4.8.5p1 Build 2536) ) #44 Thu Aug 5 16:43:18 CST 2021
MIPS: machine is RTL838xM
CPU0 revision is: 00019070 (MIPS 4KEc)
[cpu0, prom_memory_size_get:249]: Get total memory size and dma size from by kernel command line
[cpu0, prom_meminit:292]: DMA size=0x0(B)
Determined physical RAM map:
memory: 08000000 @ 00000000 (usable)
[cpu0, plat_remove_mem_parameter:111]: cmdline= boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200, 803f21bc, (null)
[cpu0, plat_remove_mem_parameter:116]: cmdline= boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200
[cpu0, plat_remove_mem_parameter:111]: cmdline= boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200, 803edfec, (null)
[cpu0, plat_remove_mem_parameter:116]: cmdline= boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200
Initial ramdisk at: 0x84000000 (3959794 bytes)
Zone ranges:
Normal [mem 0x00000000-0x07ffffff]
Movable zone start for each node
Early memory node ranges
node 0: [mem 0x00000000-0x07ffffff]
Initmem setup node 0 [mem 0x00000000-0x07ffffff]
Primary instruction cache 16kB, VIPT, 4-way, linesize 16 bytes.
Primary data cache 16kB, 2-way, VIPT, cache aliases, linesize 16 bytes
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32512
Kernel command line: boardmodel=HIK_16C_2F_30077_D root=/dev/ram0 rd_start=0x84000000 rd_size=0x3c6bf2 ip=192.0.0.64:192.0.0.128:192.0.0.1:255.255.255.0::eth0:off eth=2c:a5:9c:93:32:74 console=ttyS0,115200
PID hash table entries: 512 (order: -1, 2048 bytes)
Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
Memory: 121764K/131072K available (2838K kernel code, 147K rwdata, 920K rodata, 180K init, 155K bss, 9308K reserved)
NR_IRQS:128
console [ttyS0] enabled
Calibrating delay loop... 498.89 BogoMIPS (lpj=2494464)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
NET: Registered protocol family 16
SCSI subsystem initialized
NET: Registered protocol family 2
TCP established hash table entries: 1024 (order: 0, 4096 bytes)
TCP bind hash table entries: 1024 (order: 2, 20480 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP: reno registered
UDP hash table entries: 256 (order: 1, 12288 bytes)
UDP-Lite hash table entries: 256 (order: 1, 12288 bytes)
NET: Registered protocol family 1
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
decrypt ok
Trying to unpack rootfs image as initramfs...
Freeing initrd memory: 3864K (84000000 - 843c6000)
futex hash table entries: 256 (order: 0, 7168 bytes)
jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
msgmni has been set to 245
io scheduler noop registered
io scheduler deadline registered
io scheduler cfq registered (default)
Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x0 (irq = 47, base_baud = 12327200) is a 16550A
brd: module loaded
RTK_SPI_FLASH_MIO driver is used
Probe: SPI CS1 Flash Type W25Q256FV
0x000000000000-0x0000000e0000 : "LOADER"
0x0000000e0000-0x0000000f0000 : "BDINFO"
0x0000000f0000-0x000000100000 : "SYSINFO"
0x000000100000-0x000000800000 : "SYSTEM"
0x000000800000-0x000001a00000 : "JFFS2 APP"
0x000001a00000-0x000001d00000 : "JFFS2 CFG"
0x000001d00000-0x000002000000 : "JFFS2 LOG"
RTK_NORSFG3 driver is bypassed
TCP: cubic registered
NET: Registered protocol family 17
Freeing unused kernel memory: 180K (803d3000 - 80400000)
random: init urandom read with 3 bits of entropy available
init started: BusyBox v1.00 (2019.04.25-06:01+0000) multi-call binary
Starting pid 26, console : '/etc/rc'
RTCORE LKM Insert...
RTCORE Driver Module Initialize
IOAL init
Log init
Hardware-profile probe (HIK_16C_2F_30077_D)
Hardware-profile init
GPIO probe (unit 0): (found)
GPIO Init
SPI init (unit 0)
Intr Probe (unit 0)
TC probe (unit 0): (found)
TC init (unit 0)
TC util init (unit 0)
TC util init (isr)
Watchdog probe (unit 0): (found)
Watchdog init (unit 0)
I2C probe (unit 0)
I2C init (unit 0)
RTL8231 probe (unit 0): (found)
RTL8231 init (unit 0)
NIC probe (unit 0)
IOAL init
RTK Driver Module Initialize
MAC probe (unit 0)
Chip 8382 (found)
MAC init (unit 0)
SMI protocol probe (unit 0)
PHY probe (unit 0)
Chip Construct (unit 0)
Chip Construct
Disable PHY Polling
PHY Reset
MAC Construct
Serdes Construct
PHY Construct
Enable PHY Polling
PHY Power Off
PHY init (unit 0)
Mgmt_dev init (unit 0)
RTNIC Driver Module Initialize
RTDRV Driver Module Initialize
Wed Aug 11 11:10:11 CST 2021
COMMON GPL drv init ok!
hikio_drv: module license 'HIKVISION' taints kernel.
Disabling lock debugging due to kernel taint
HIKVISION hikio Device Driver (built Aug 4 2021 16:31:20)
Register chrdev hikio major:262,minor:0 success!
HIKVISION HIK_SW_MGMT Device Driver (built Aug 4 2021 16:30:53)
Register chrdev hik_sw_mgmt major:254,minor:0 success!
boardname:HIK_16C_2F_30077_D
Register chrdev poe_led major:220,minor:0 success!
ipaddr = 192.0.0.64,hw ether = 2c:a5:9c:93:32:74 ,route = 192.0.0.1
boardmodel is :HIK_16C_2F_30077_D
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
I2C device init (unit 0)
software i2c init (unit 0)
start update flag check
board model = HIK_16C_2F_30077_D not need fiber port monitor
normal start up
start pin init
mkdir: Cannot create directory `/var/run': File exists
Starting pid 139, console /dev/ttyS0: '/bin/sh'
BusyBox v1.00 (2019.06.05-02:29+0000) Built-in shell (ash)
Enter 'help' for a list of built-in commands.
BusyBox Protect Shell (psh)
Enter 'help' for a list of psh system commands.
# 11111111110
success for get sec from flash
#########product info:#############
devicename: DS-3E1518SP-E
softVersion:V1.2.7 build 221228
language: CN
serialNo:J13746443
ezvizCode:FOCQFO
deviceType:0xa30014, deviceClass:5686
portNum:18
devicePrio:4500
deviceSeries:10746371
######################################
if_delRoute error: No such process
Jan 1 00:00:27 passwd[183]: password for `root' changed by user `root'
[01-01 00:00:29][1][df]ezdev_set_sleep_status enable:0
[01-01 00:00:30][1][df][2000]alarm ezDevSDK_Common_Module_RedirectReg type 300, command 18699, domain 2000
[01-01 00:00:30][1][df][2000]alarm ezDevSDK_Common_Module_RedirectReg type Alarm_Light, command 19213, domain 2000
[01-01 00:00:30][1][df][2000]alarm ezDevSDK_Common_Module_RedirectReg error, ret 7, command 4b0d
[01-01 00:00:30][1][df][5000]init succ
appweb: Error: Can't read group credentials: 0. Check your /etc/group file
create new host
host is reused!!!
mprCreateSsl10522
mprCreateSsl10522
Init System Success! 系统初始化成功
sched: RT throttling activated
